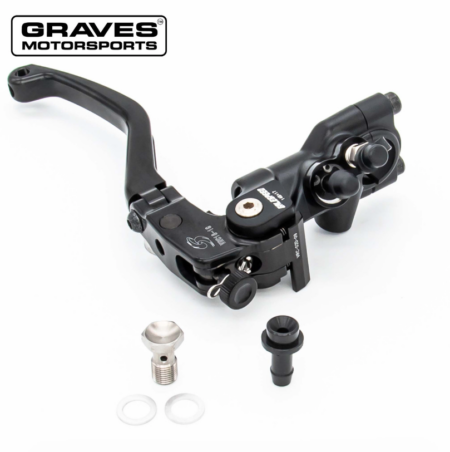

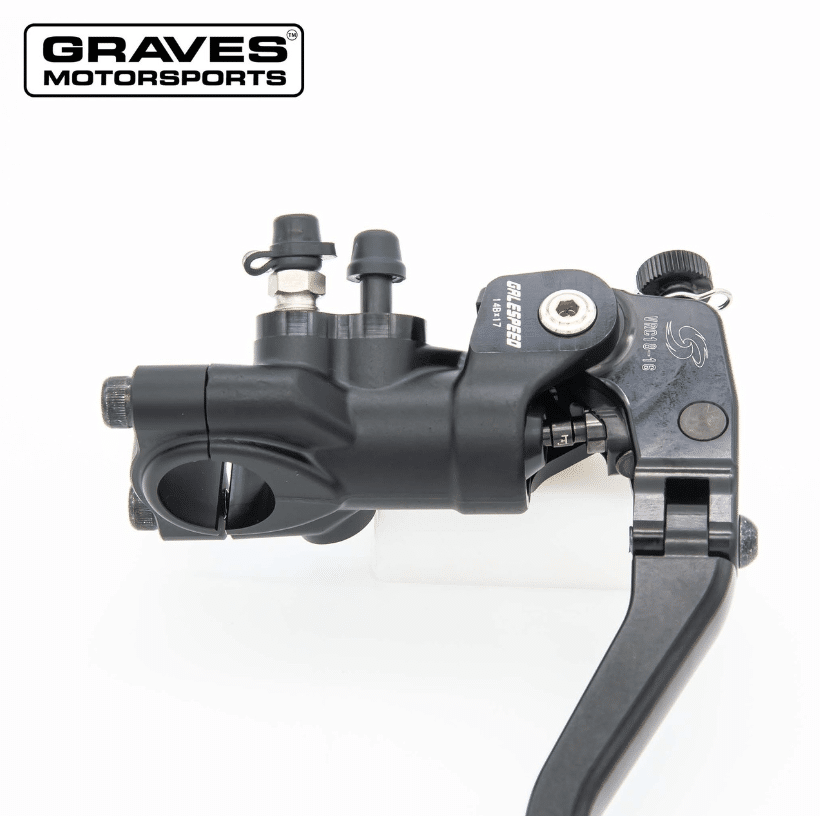

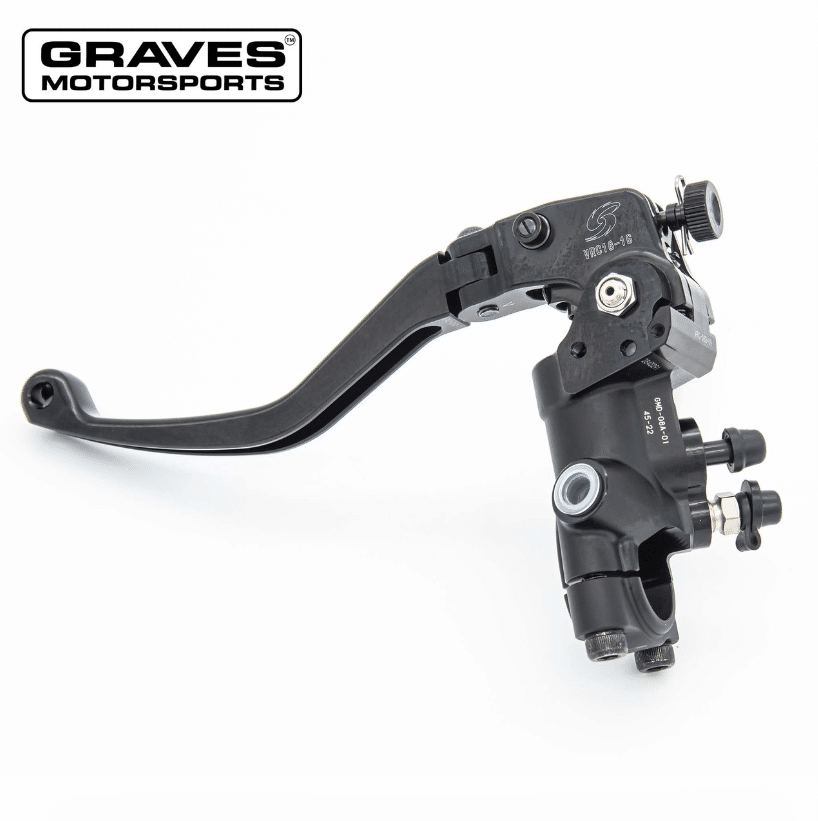

Galespeed VRD 14mm Radial Brake Master Cylinder

Description

Galespeed VRC (Variable lever Ratio Control) master cylinders. Galespeed designed and developed “Variable lever Ratio Control” gives you wider lever ratio adjust range (0.25 mm per click, 8 clicks / maximum 2 mm adjust range – from supporting point to operating point), and helps you to find the most suitable brake feeling without being affected by different brake calipers.

Made from high-pressure forged aluminum materials, the setup allows for precise push rod to cylinder alignment on the handlebar. This in turn provides a more direct brake feel and control with less friction at the lever.

• Forged master cylinder body: Aluminum master cylinder body is made by high-pressure forging, which realizes high-strength and light weight.
• Radial-pump: Push rod and master cylinder are lined and placed in 90 degrees against handlebar, which gives you more direct brake feeling and fine braking.
• Variable lever ratio control: Gale Speed original lever ratio control can adjust the lever ratio (from point of support to point of load) in 0.25 mm per step, total 2 mm at maximum.
• Folding lever blade: When the bike is toppled over, the lever blade is folded for less damage on the master cylinder.
• Power lever blade: By improved the lever blade shape and gripping area, it achieved better grip control with less gripping power. (Straight lever blade used for clutch master cylinders.)
• Quick release handlebar clamp: By loosing just one bolt, master cylinder can be detached from handlebar.
• Note: Update to remote adjuster cable and bracket by purchasing the Galespeed Remote Adjuster And Bracket Set (sold separately).
