Norton Racing Superbike Ported Head Kit (50hp) – Yamaha R3

Name: Norton Racing Superbike Ported Head Kit (50hp) – Yamaha R3
Brand: Norton Motorsports / Norton Racing
SKU: _000051
Availability: InStock

Original price was: $3,277.82.Current price is: $3,260.26.

DO NOT SHIP until we have emailed you with shipping instructions AFTER you have placed your order, and it has been confirmed!

These are non-returnable once installed.

*Additional shipping charges apply to this item.

You must send us your OEM core cylinder head, throttle body, camshafts, and fuel pump to be modified or exchanged. Once you place your order, we’ll contact you with shipping information to send in your parts.

*Contact us first if you have a 2018 or newer international model bike.

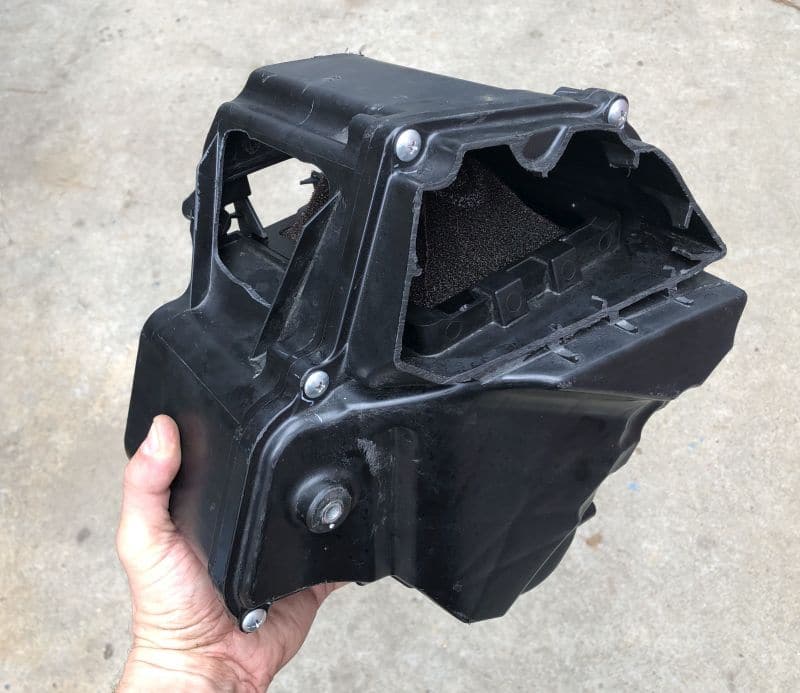

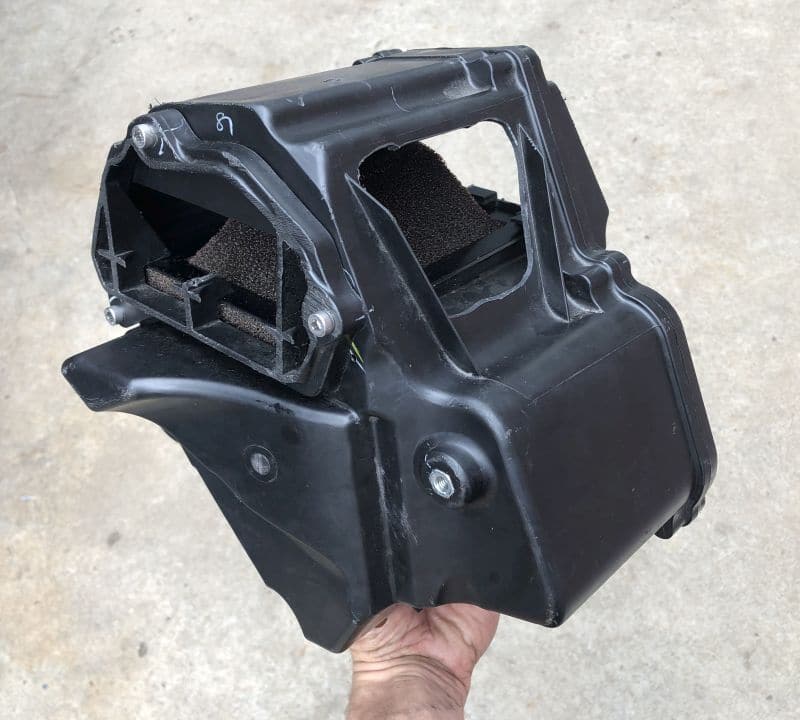

*You will have to modify your OEM airbox to use this kit. See pictures of modified airbox to the left.

We recommend using the Graves Motorsports Works 2 full exhaust with this kit, but you will see similar significant gains with any high quality, full length, full system exhaust that uses a restrictor baffle in the end.

In order to maximize performance and reliability of this kit, we only recommend tuning this kit with the aRacer Super RC2 using our parameters.

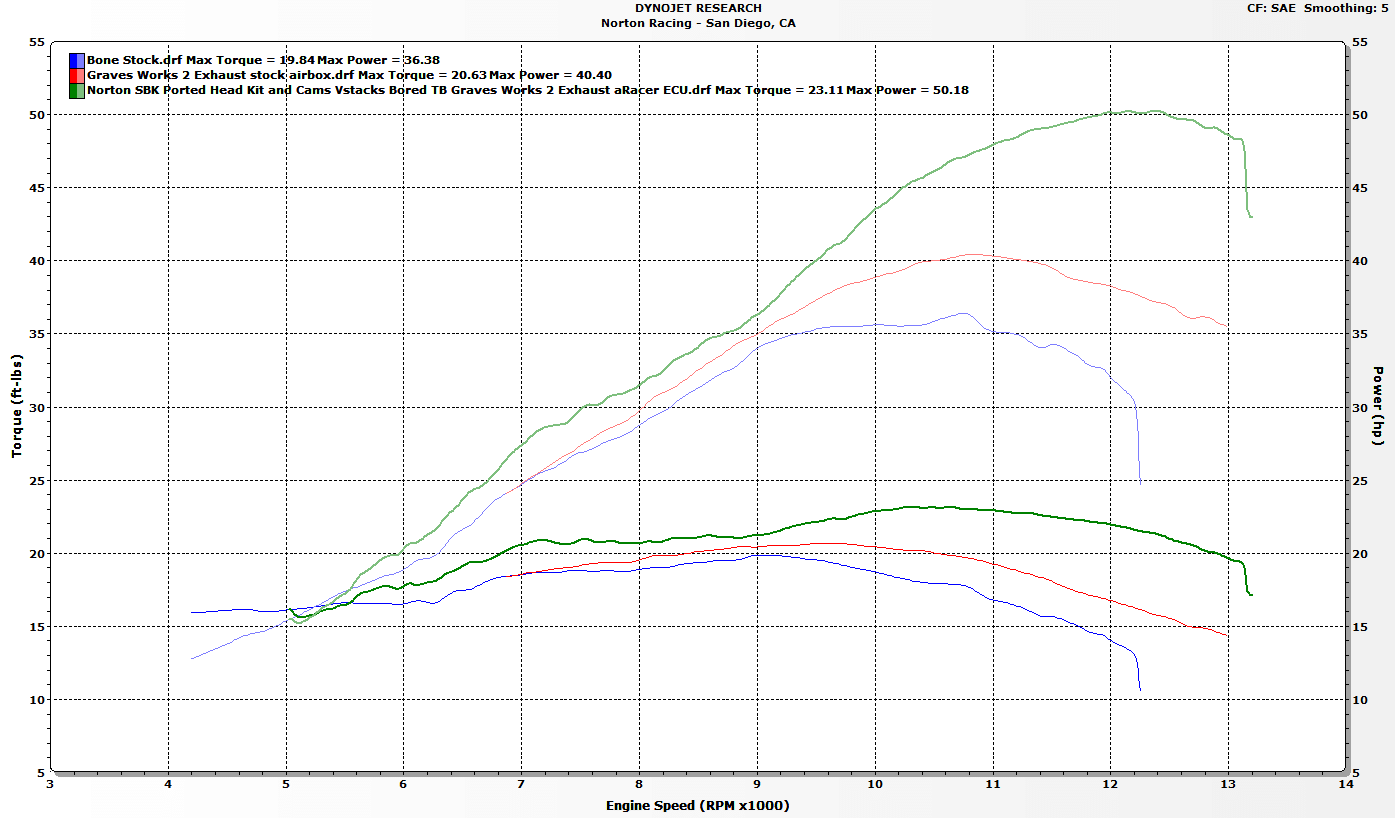

Here’s the before and after comparison dyno graph on a 2017 Yamaha R3, keep in mind, this is all done with 91 pump gas, and if you want to run high performance race fuel, you could easily get another 2hp from this kit:

*If you would like to run this Superbike kit with high performance race fuel, we recommend installing CP Carrillo connecting rods for added strength to ensure the longevity of your motor.

Norton Racing Superbike CNC Ported Cylinder Head Norton Racing Superbike CNC Ported Cylinder Head

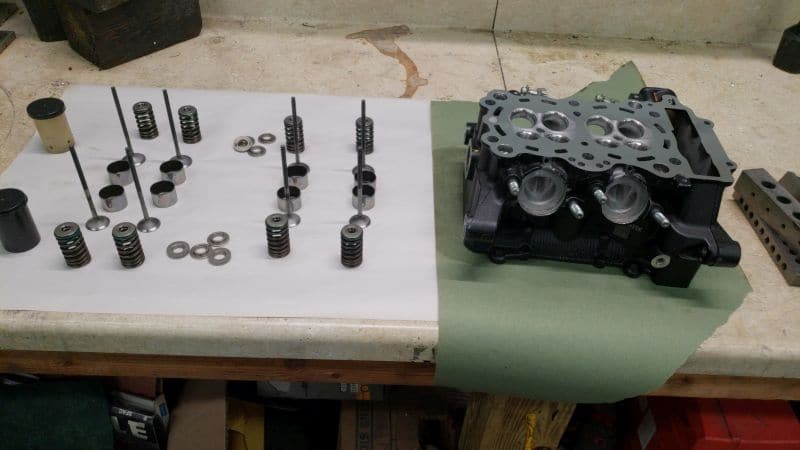

This Norton Racing ported cylinder head has been optimized on the flow bench and dyno, digitized to remove any imperfections done by hand porting, then CNC duplicated for maximum performance and consistency. The face has been milled to increase compression and a high performance valve job done.

Price includes installation of valves and seals.

For maximum performance, this kit is designed to be paired with the Graves Works 2 full exhaust, MWR race air filter, Norton Racing Superbike Velocity Stacks and modified airbox, and tuned with the aRacer Super RC2 ECU to our parameters.

Available options:

New Valves and/or Seals New Valves and/or Seals

Do you want us to install new valves and/or seals in your new ported head instead of re-using valves and seals from your original head?

Available options:

Norton Racing Superbike Extreme Camshafts Norton Racing Superbike Extreme Camshafts

Our Norton Racing Superbike Extreme spec camshafts are only available as part of this Superbike Ported Head kit.

We will provide cam timing specs for your installation. You will need our slotted cam gears for installation and timing.

*Must be used with an OEM thickness head gasket.

Available options:

Norton Racing Slotted Cam Gears Norton Racing Slotted Cam Gears

Required for setting correct cam timing with Norton Racing Extreme Camshafts

Available options:

No Norton Racing Slotted Cam Gears

No compatible options to display.

Cometic .018 (OEM thickness) Head Gasket Cometic .018 (OEM thickness) Head Gasket

This kit must be installed with an OEM thickness (0.018) head gasket for clearance. Do not attempt installation with a thin head gasket.

Available options:

Norton Racing Superbike Velocity Stack Norton Racing Superbike Velocity Stack

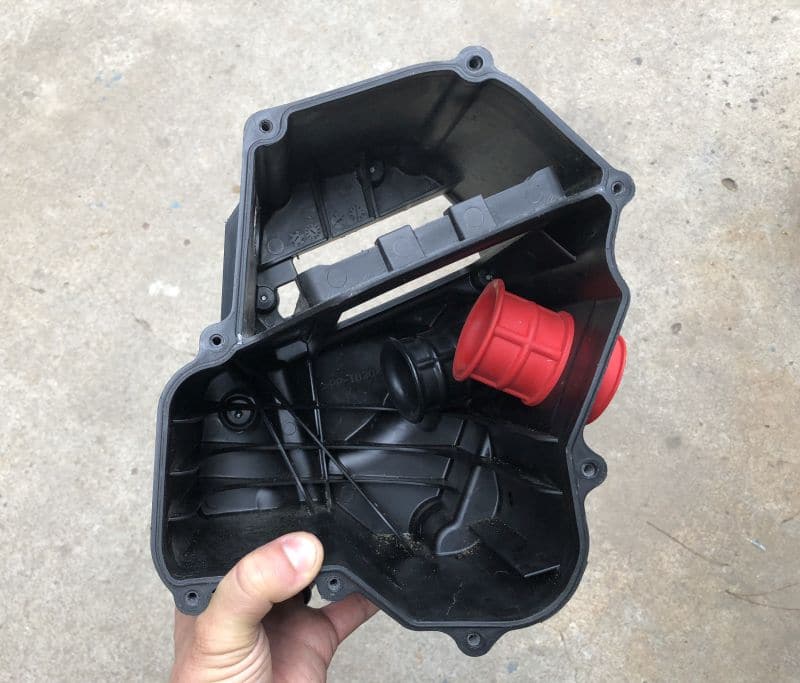

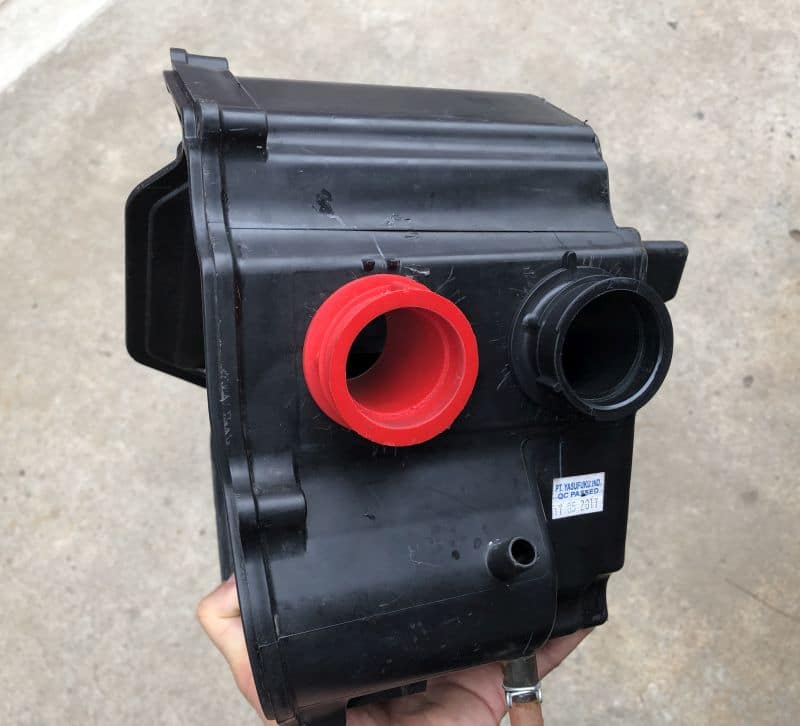

The OEM Airbox in the Yamaha R3 contains two different length velocity stacks, a long one and a short one. This Norton Spec Velocity stack is to be paired with the shorter OEM velocity stack and used with a modified OEM airbox.

Available options:

CHOOSE COLOR *

Clear

Modify OEM Fuel Pump for Increased Fuel Pressure Modify OEM Fuel Pump for Increased Fuel Pressure

When building an R3 Superbike with this kit, it is necessary to modify the OEM fuel pump to increase fuel pressure, otherwise the OEM fuel pump and injectors cannot supply enough fuel to properly tune the engine.

*You must send us your OEM fuel pump to be modified.

Available options:

Norton Racing Bored Throttle Body Norton Racing Bored Throttle Body

When building a Yamaha R3 Superbike, air flow becomes a problem, and overboring the throttle body to increase flow is the cure. We have dyno tested performance with straight bore and tapered bore throttle bodies and prefer to use the largest straight bore throttle bodies for maximum performance. Our Yamaha R3 throttle bodies are bored 1.5mm over the OEM size to increase air flow. New butterfly valves are installed and additional proprietary changes are made to increase air flow based on our own dyno testing.

*You must send us your OEM fuel pump to be modified.

Available options:

Graves Manual Cam Chain Tensioner Graves Manual Cam Chain Tensioner

This kit can be used with the OEM hydraulic cam chain tensioner or we can include a Graves manual cam chain tensioner.

*Maintaining proper cam chain tension with this kit is critical. If you choose to use a manual cam chain tensioner, you MUST maintain proper tension or engine damage may occur!
